360° manhole inspection camera QV360
For rapid inspection of manholes and structures.
The manholes are filmed with a 360° camera and all data is recorded within seconds.
Later, a 3D model of the manhole can even be created from this 360° film.

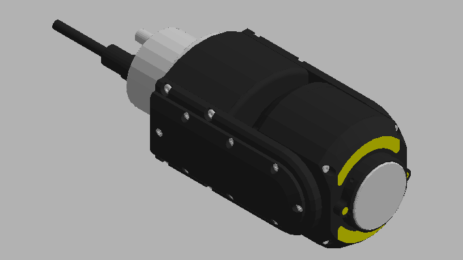

Pan and tilt camera PT90
  • Dimension: Ø 90 mm
  • Resolution 1920 x 1080
  • HD Video 1080p/30fps
  • 36x zoom (3x optical + 12x digital)
  • Manual Focus + One Push Auto Fokus
  • Viewing angle horizontal 90°
  • Endless pan
  • Tilt +/- 120°
  • Pan and tilt position measuring
  • Parallel laser

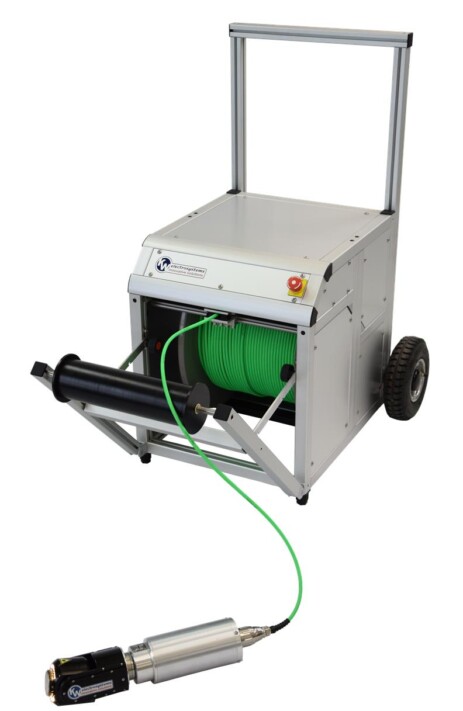

Well camera
For inspection of deep wells up to 500 m under water.
Conection via up to 1000 m fiber optocal hybrid cable and controlable with a PC.
  • 50 bar pressure proof
Observation camera
The camera can be used for monitoring in harsh environments or on robots.
Conected via a Ethernet network.
  • 3 bar pressure proof (800 mbar internal pressure)
